Adding UNSPSC Codes

Previous  Top  Next

Overview



As described in the section UNSPSC Coding most catalogue formats will require items within the electronic catalogue to have a valid UNSPSC assigned to them.  The Supplier Portal contains a searchable dictionary of UNSPSC codes.



Do-it Click lookup to the right of the catalogue_item_unspsc_field.

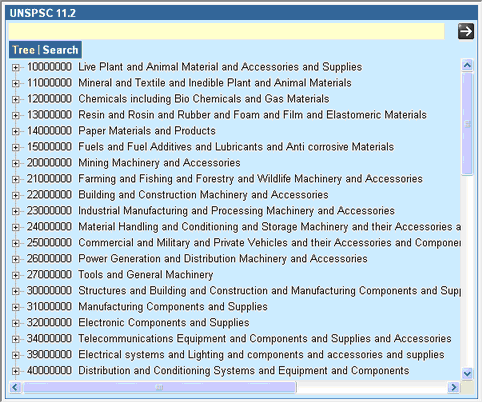

The UNSPSC window will be displayed, with UNSPSC codes listed as a Tree view.



catalogue_unspsc_allcodes

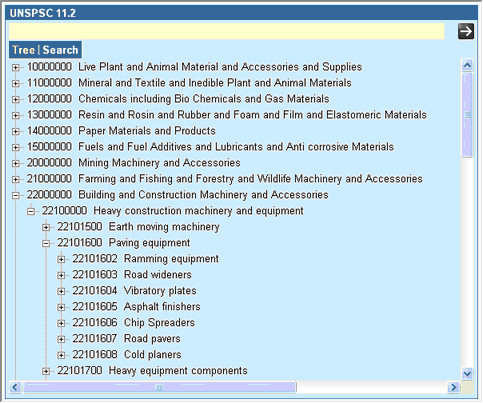

Do-it Click the expand icons to expand the tree to view the codes and their associated descriptions within the dictionary.



catalogue_unspsc_allcodes_expanded



A UNSPSC description search facility is also available.



Do-it Click catalogue_unspsc_searchoption to activate the search.



Do-it Enter text into the search field catalogue_unspsc_search_text and



Do-it Click search

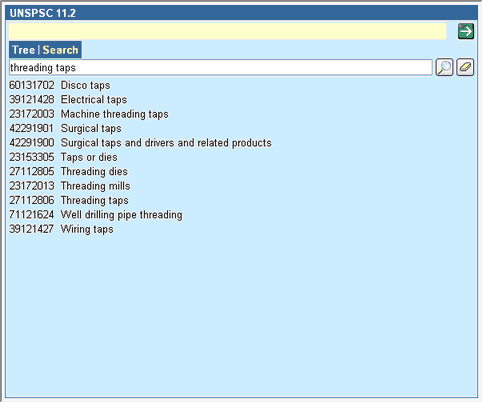

The UNSPSC codes that have descriptions that match the search text will now be displayed within the lookup window.



catalogue_unspsc_search_results



If none of the codes displayed are relevant, or the search does not return any results, the search text can be cleared by clicking Eraser and entering different text.

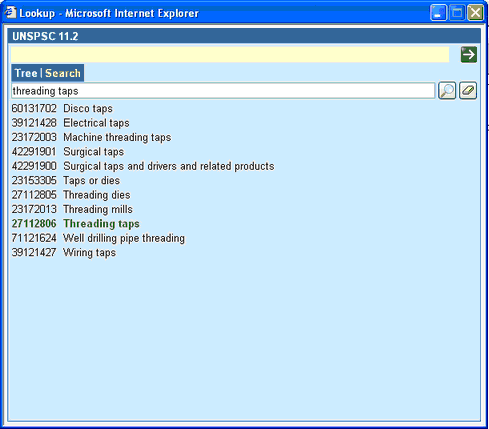

If one of the UNSPSC codes listed from the search is relevant, the code or description can be clicked on to select the record.

catalogue_unspsc_search_selectitem



The selected UNSPSC code and it's description will now be displayed at the top of the lookup window.



catalogue_unspsc_search_selecteditem



Do-it Click go to add the UNSPSC code to the catalogue item.

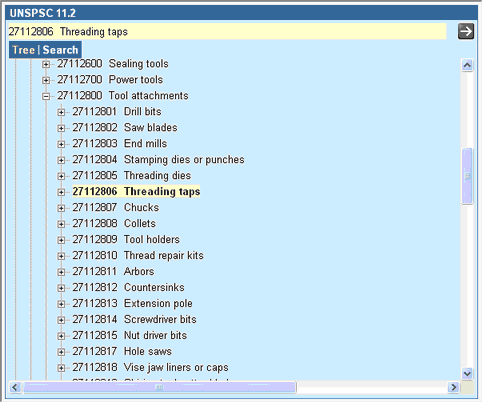

Prior to adding the UNSPSC code to the catalogue item, it is possible to switch back to the Tree view by clicking on the catalogue_unspsc_treeoption function. This can be useful for identifying where the selected code exists within the UNSPSC dictionary.



catalogue_unspsc_tree_view
